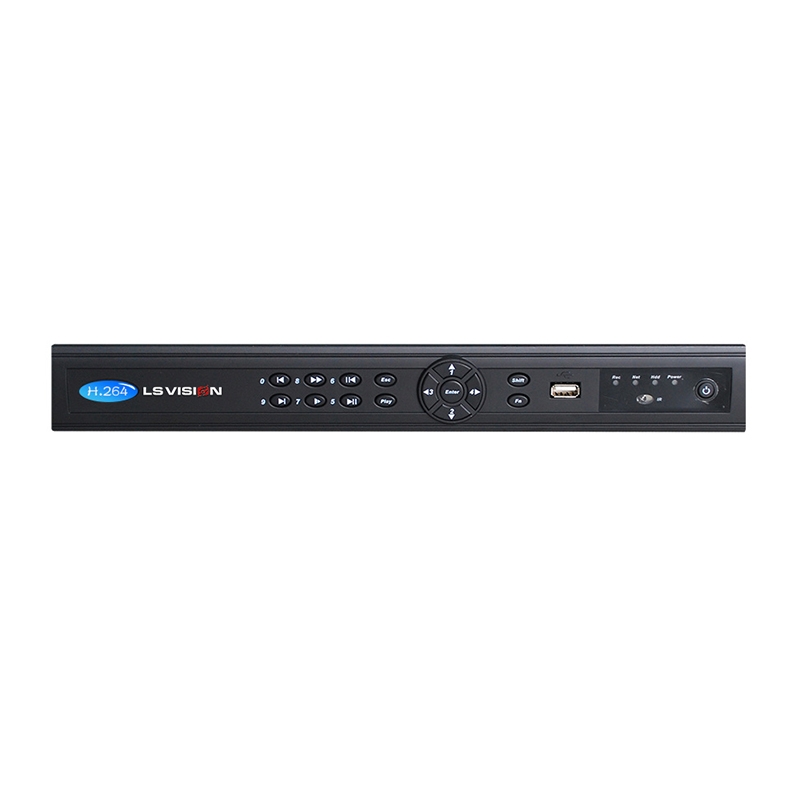

LS VISION High Quality 32ch NVR 1080P HD H.264 POE Network Video Recorder Support 2 SATA

Units per Carton
Carton Dimensions (mm)
Carton Weight (kg)

Hisilicon Solution IP Camera Motorized Lens IP Camera 4 in 1 Hybrid Cameras

Starlight IP Camera IP Camera 360 Degree Panoramic Camera


Specification

Module		LS-NF7232
OS		Embedded Linux
master chip		Hi3535
Access Bandwidth		160M
Video&Audio input	Bidirectional Talk	1 CH(Line in,2Vpp,1Kohms)
Video&Audio input	IPC Input	up to 32ch D1@30fps（2Mbps）or 32ch 720P@30fps(4Mbps) or 16ch 1080P@30fps(8Mbps) or 32ch 1080P@30fps(4Mbps) or 16ch 3MP@20fps(8Mbps) or 10ch 5MP@10fps(12Mbps)
Video&Audio output	CVBS Output	1CH,BNC(1.0Vp-p,75ohms）
	VGA	1CH,Resolution 1920×1080,1440×900,1280×1024,1024×768,800×600
	HDMI	Standard 1.3a
	HDMI	Resolution 1920×1080,1440×900,1280×1024,1280×720,1024×768,800×600
	Audio Output	1CH,BNC(Line out,2Vpp,300ohms)
Video&Audio encoding	Audio Compression	G711A
Video&Audio encoding	Audio Bit Rate	64Kbps
Video&Audio codecs	IP Resolution	Main stream:up to 5632×4224 Auxiliary stream:4CIF
	Video bitrate	Up to 2Mbps@D1,4Mbps@720P,8Mbps@1080P
	Video decoding	MPEG-4/H.264(Up to High Profile@Level5.0）
	Synchronous Playback	Up to 16CH
resource capacity	D1 Play back	16CH
	720P Play back	13CH
	1080P Play back	6CH
	switch for 3.0MP IPC	16CH 3MP@20fps(8Mbps)
	3.0MP Play back	4CH
	switch for 5.0MP IPC	10CH 5MP@10fps(12Mbps)
	5.0MP Play back	2CH
Other Function	Bidirectional Talk	Two-way voice intercom function
	Motion Detection	Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
	Picture Capture	Local Capture&Web Capture
HDD Interface	SATA	2
HDD Interface	ESATA	0
POE	POE interface	N/A
External Interface	Network Interface	1 RJ45 10M / 100M /1000M adaptive Ethernet interface
	USB	2 USB 2.0 Interfaces
	Alarm Input	16CH
	Alarm Output	3CH
	RS-232	N/A
	RS-485	1RS-485 interface
General	Dimensions	360x260x48mm(W×D× H)
	Weight	2Kg(without HDD)
	Power Supply	12V/4A
	Working Temperature	-10℃–＋55℃
	Working Humidity	10％–90％
	Consumption	20W(without HDD)

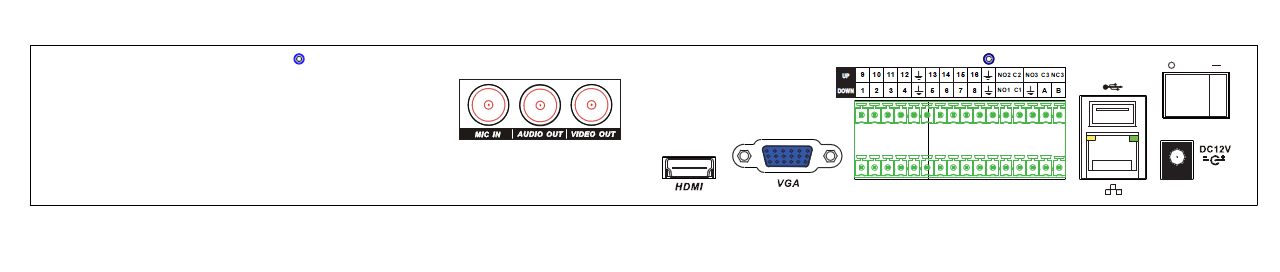

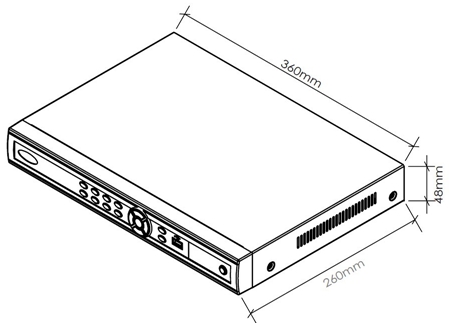

Dimension

LS VISION P2P Full HD 1080p NVR 32ch cctv NVR

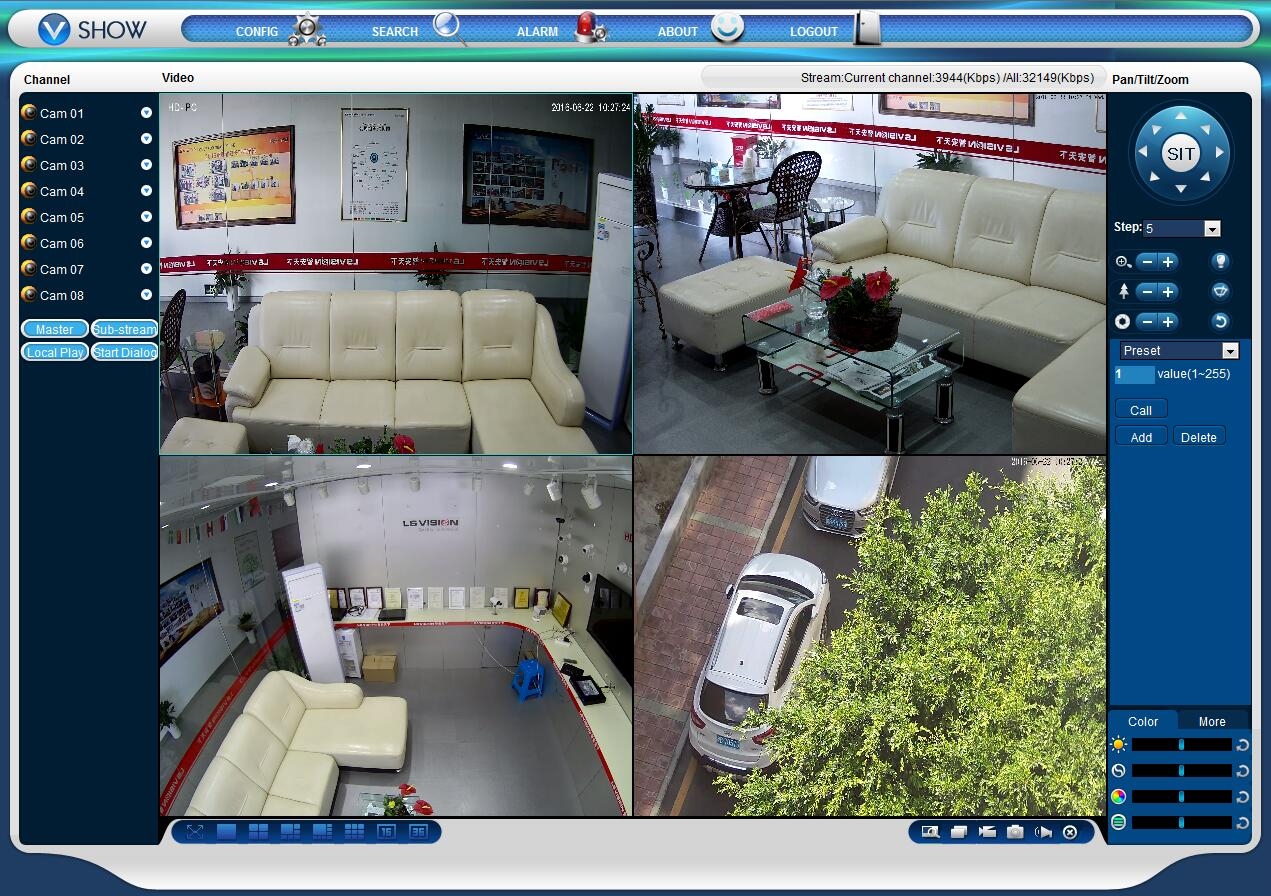

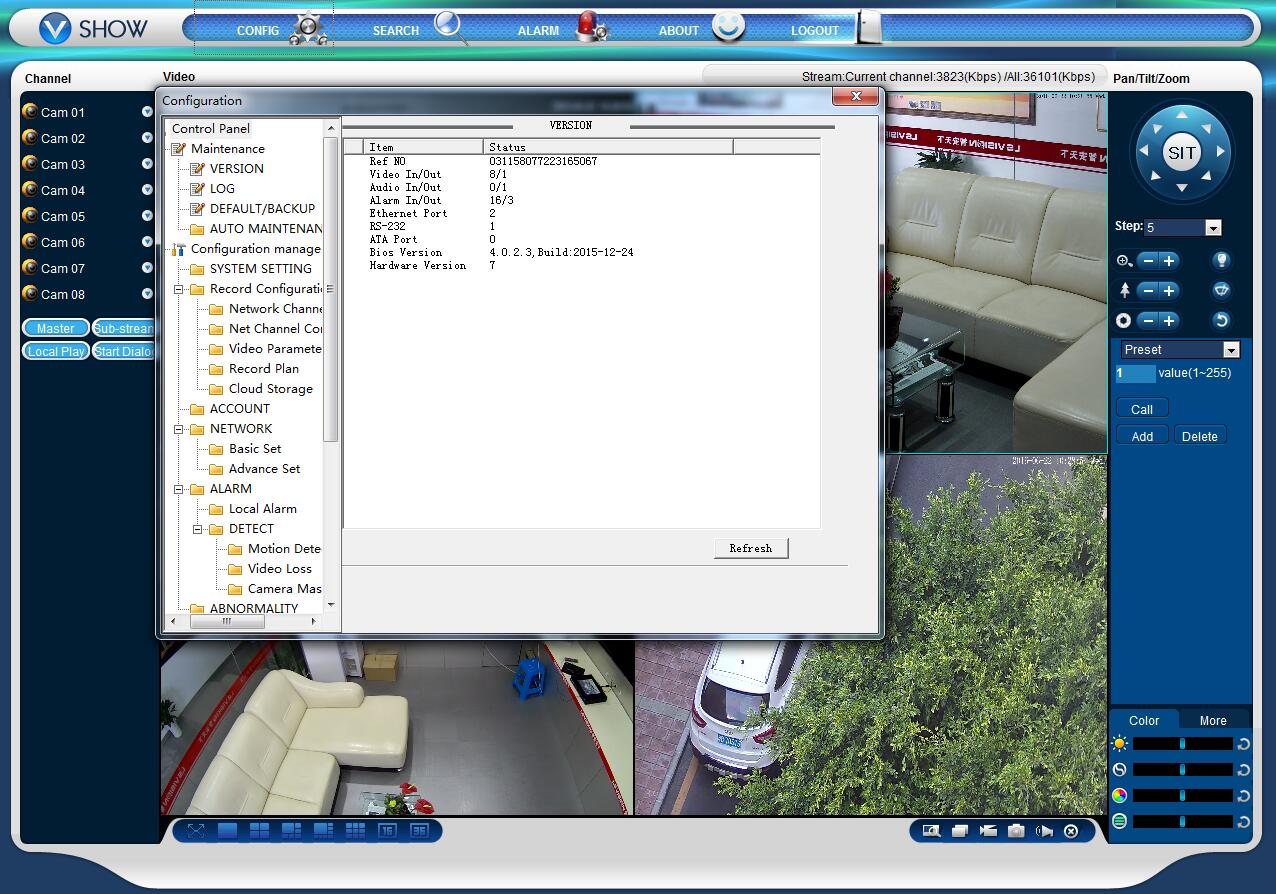

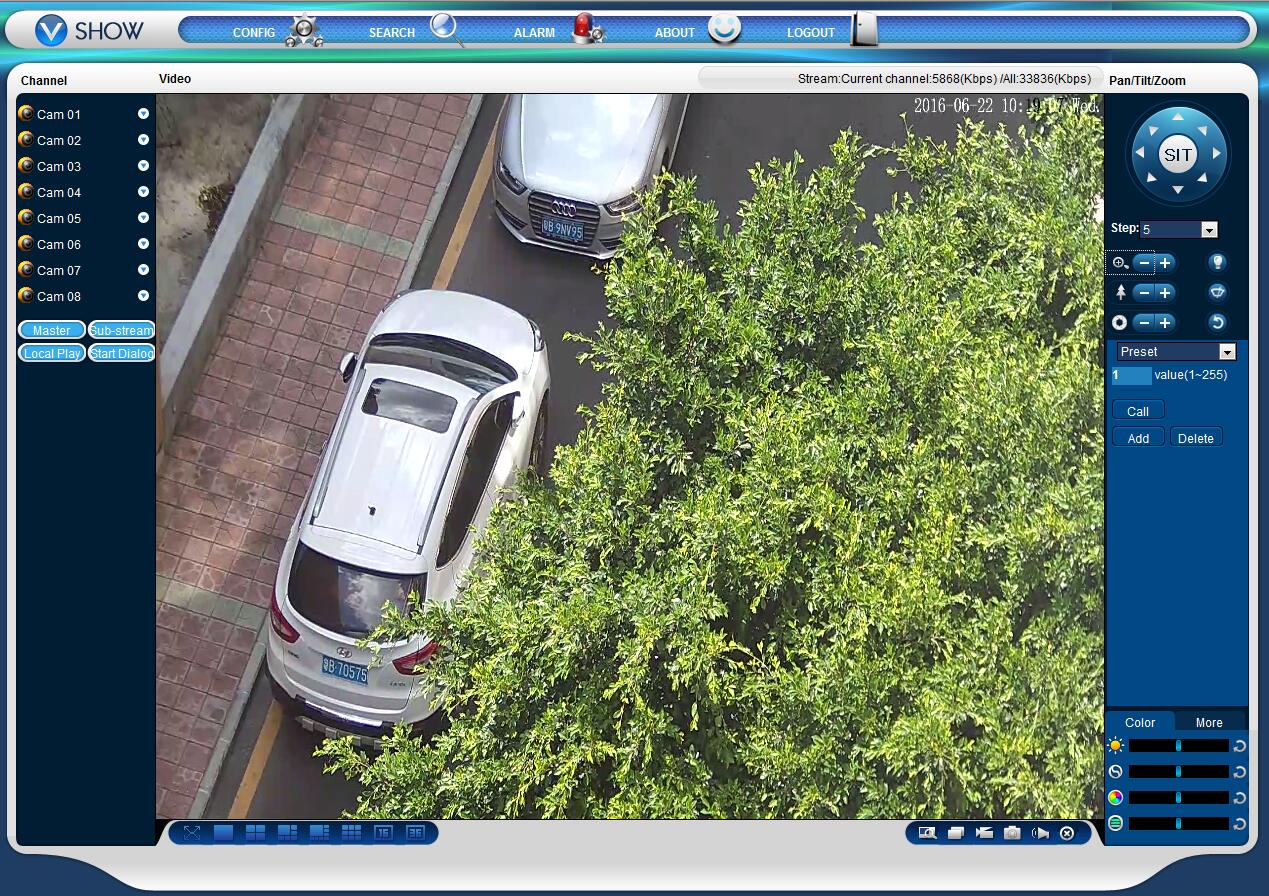

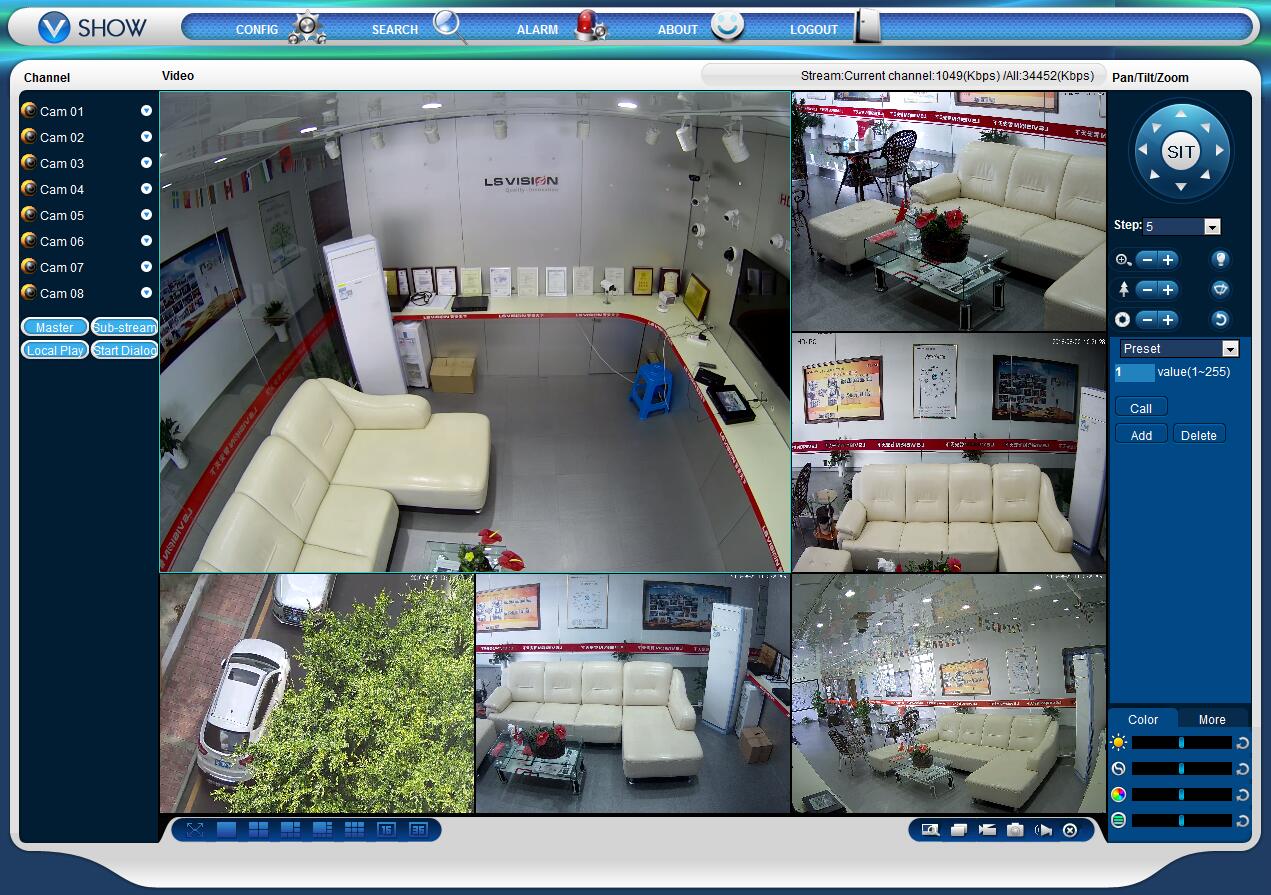

Features | CMS | IE Interface

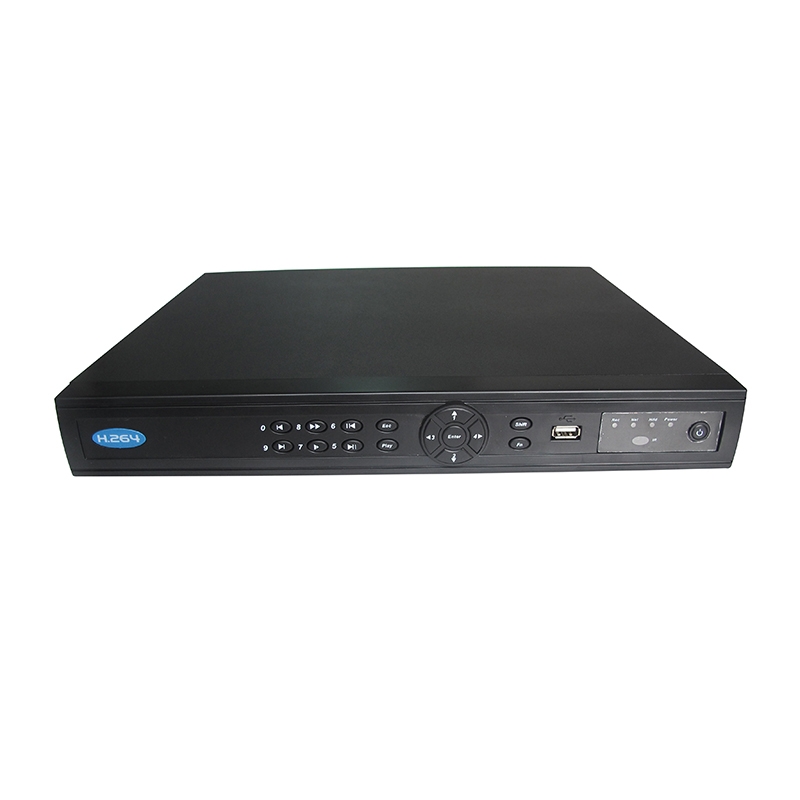

LS VISION High Quality 32 channel NVR 1080P HD H.264 POE Network Video Recorder Support 2 SATA

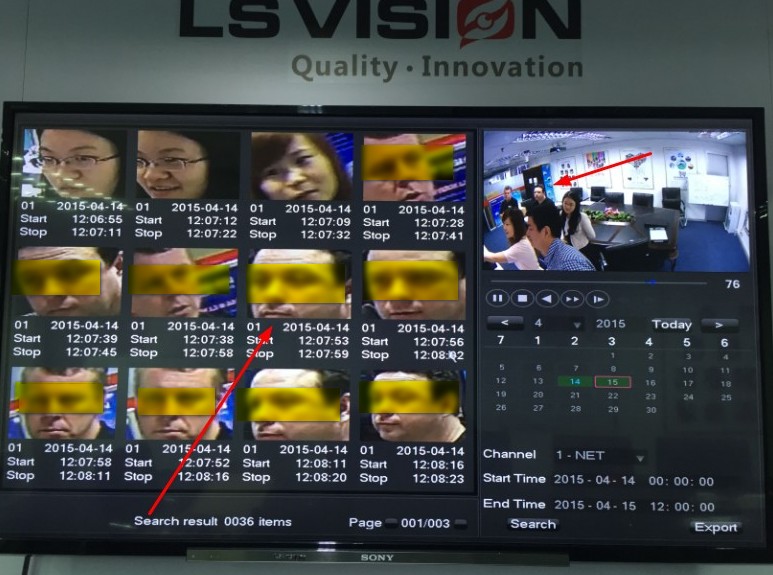

Features I Face Detection

LS VISION HD NVR Face Detection function

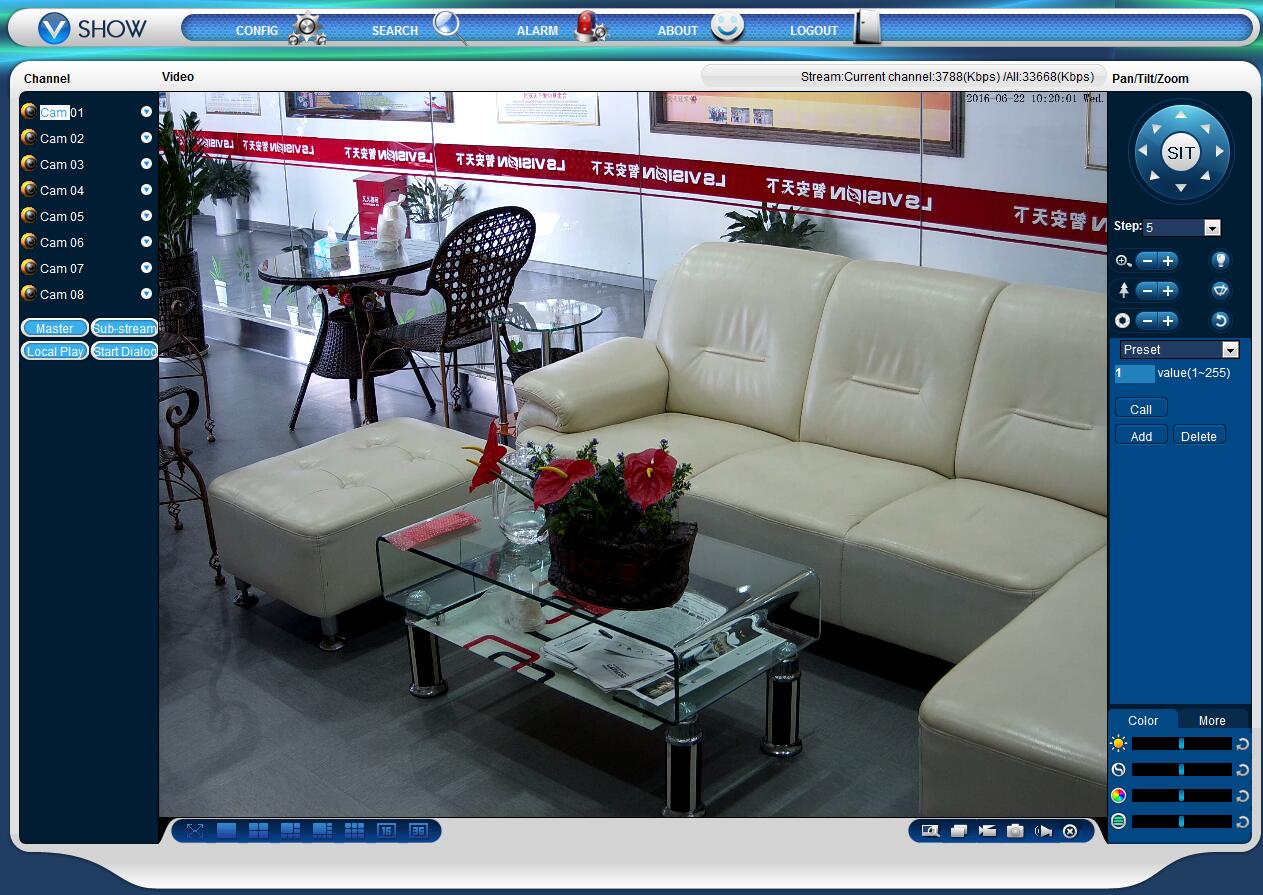

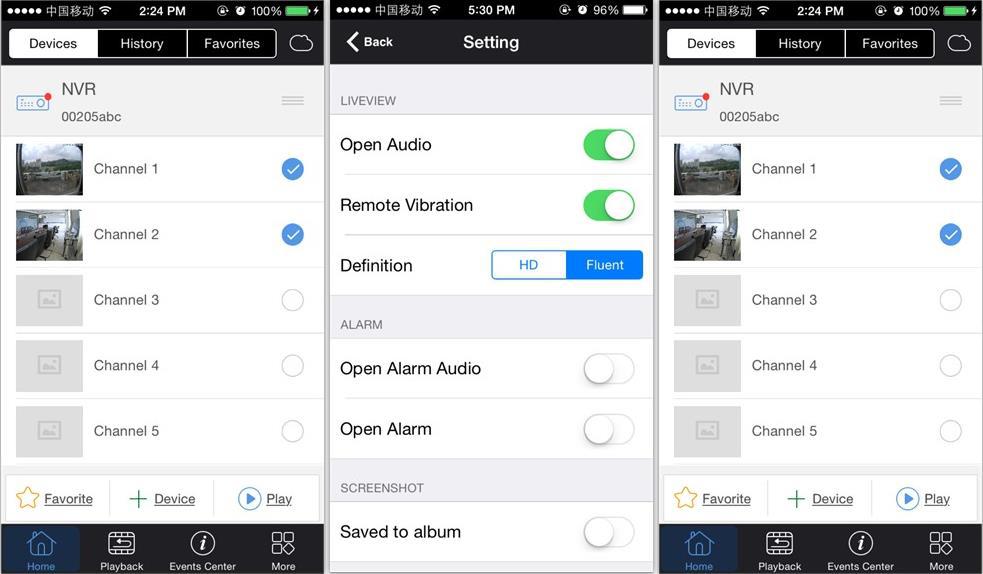

Features | CMS | Free APP

LS VISION HD NVR APP
