LSVISION – PC Projection Sound Alarm Handheld Portable Thermal Camera CE Certification Digital Imager Heat Detector Fever Scanner Thermal Camera & Face recognition

State-of-the-art technologies are introduced and upgraded for the more efficient and stable manufacturing of the product. PC Projection Sound Alarm Handheld Portable Thermal Camera CE Certification Digital Imager Heat Detector Fever Scanner functions perfectly in the application scenario(s) of Thermal Camera & Face recognition. Having carried out multiple tests, our technical staff has proved the use of technology ensures PC Projection Sound Alarm Handheld Portable Thermal Camera CE Certification Digital Imager Heat Detector Fever Scanner performance can be fully played out.Customers engaged in the field(s) of CCTV Camera speak highly of our product. Thanks to the multiple characteristics that have been tested by our QC inspectors,IP Camera/NVR/Solar Camera/Smart Battery Camera has a wide application in different fields mainly including Thermal Camera & Face recognition.We hold a firm belief that the broad application of the product will drive the industry to develop and advance rapidly.

PC Projection Sound Alarm Handheld Portable Thermal Camera CE Certification Digital Imager Heat Detector Fever Scanner

Product Description

Model	LS-TI001K
Thermal Camera
Sensor type	Uncooled focal plane array
Temperature range	30℃~45℃
Resolution	0.1℃
Accuracy	±0.5℃（ @ 25℃ ambient temperature）
Minimum measuring distance	15cm
Optimal measuring distance	1m
Temperature measurement response time	≤500ms (95% of reading)
Thermal resolution	19200 (160×120)
Image Sensor	12μm

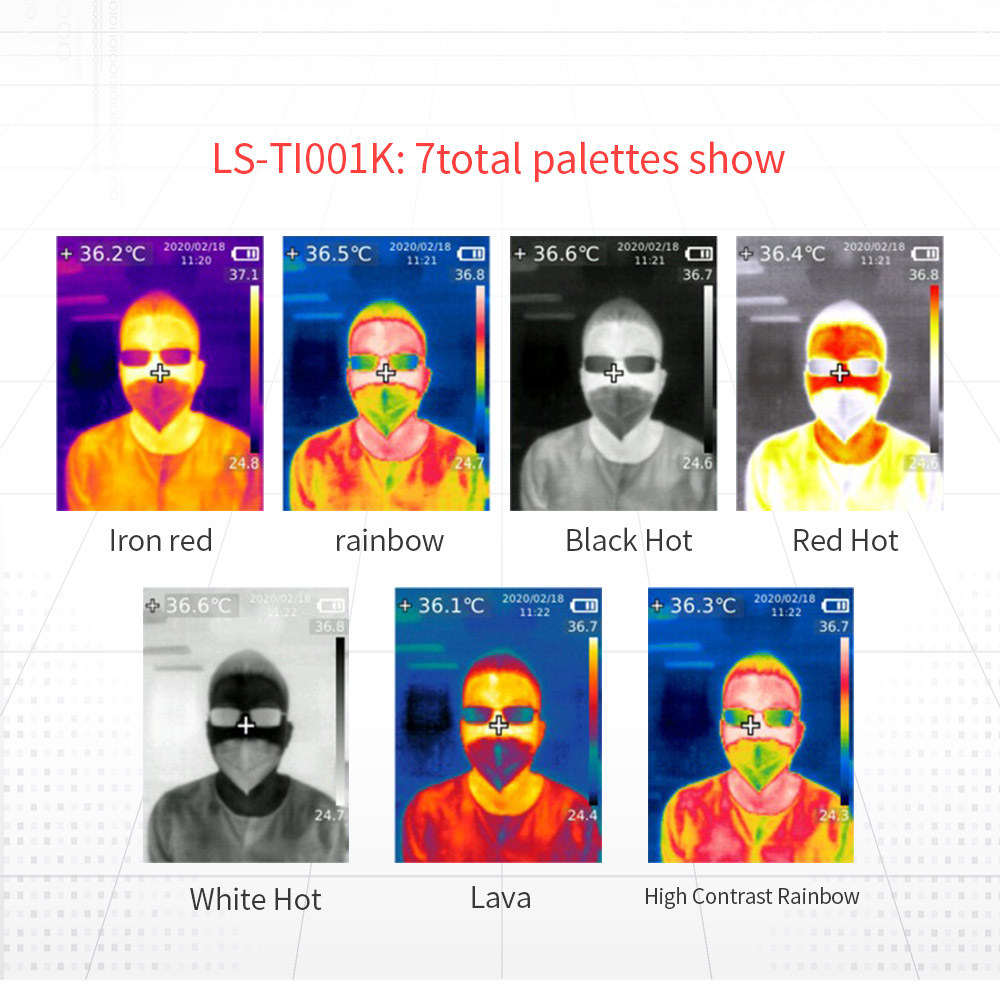

Palettes	Iron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow
Bandwidth of infrared spectroscopy	8~14μm
Field of view (FOV)	56°(H) × 42°(V)
Instantaneous field of view (IFOV)	6mrad
Thermal imaging sensitivity	＜50mk
Frame rate	＜9Hz
Temperature display	Center temperature measurement and high temperature tracking (default)
Image format	BMP
Image mode	Thermal camera, visible camera, image blending
Temperature measuring point	Besides central point, 3 temperature measuring points can be added
Display resolution	320×240
Visual camera
Resolution of visible camera	640×480
Display resolution	320×240
Image blending	0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera)
PC analysis software (PC)
Real-time image transmission	N/A
PC analysis software（PC）	N/A
Data communication	N/A
Auto power off	Selectable (5min, 10min, 30min), 30min auto power off (default)
Battery life	≥6 hours
Charging time	5 hours
Charging voltage/current	5V/2A

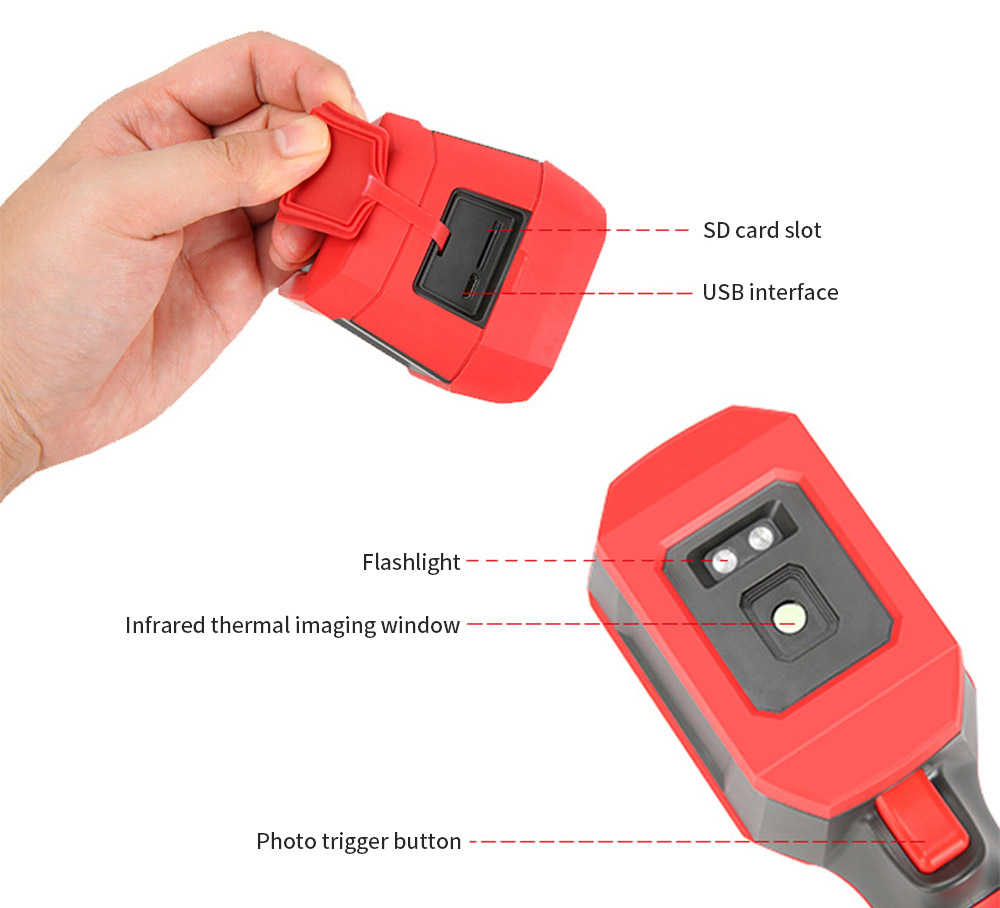

Image storage	Micro SD card

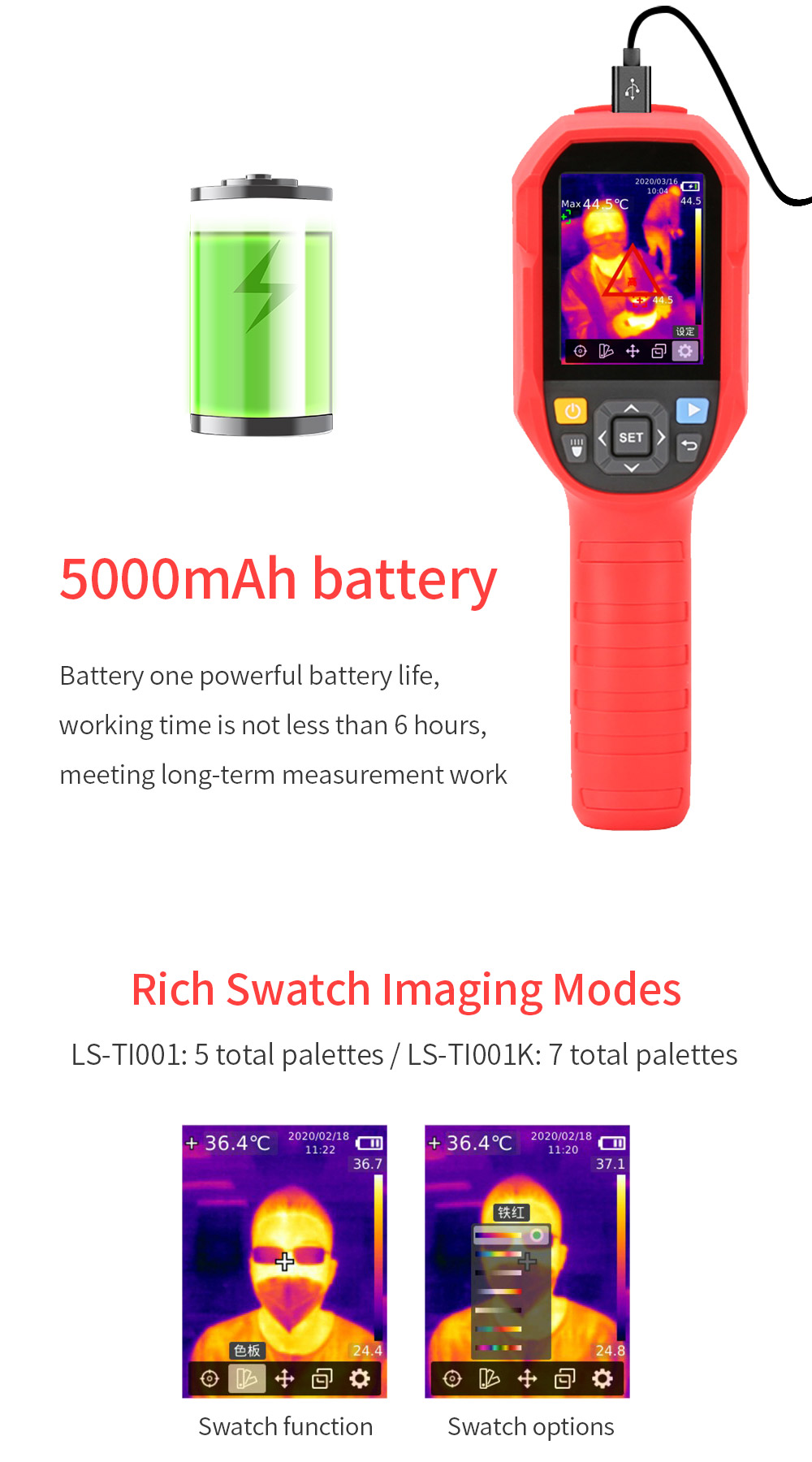

Power	A single Li-ion 3.7V/5000mAh 26650 battery
Display	2.8″ TFT LCD
Product color	Red + grey

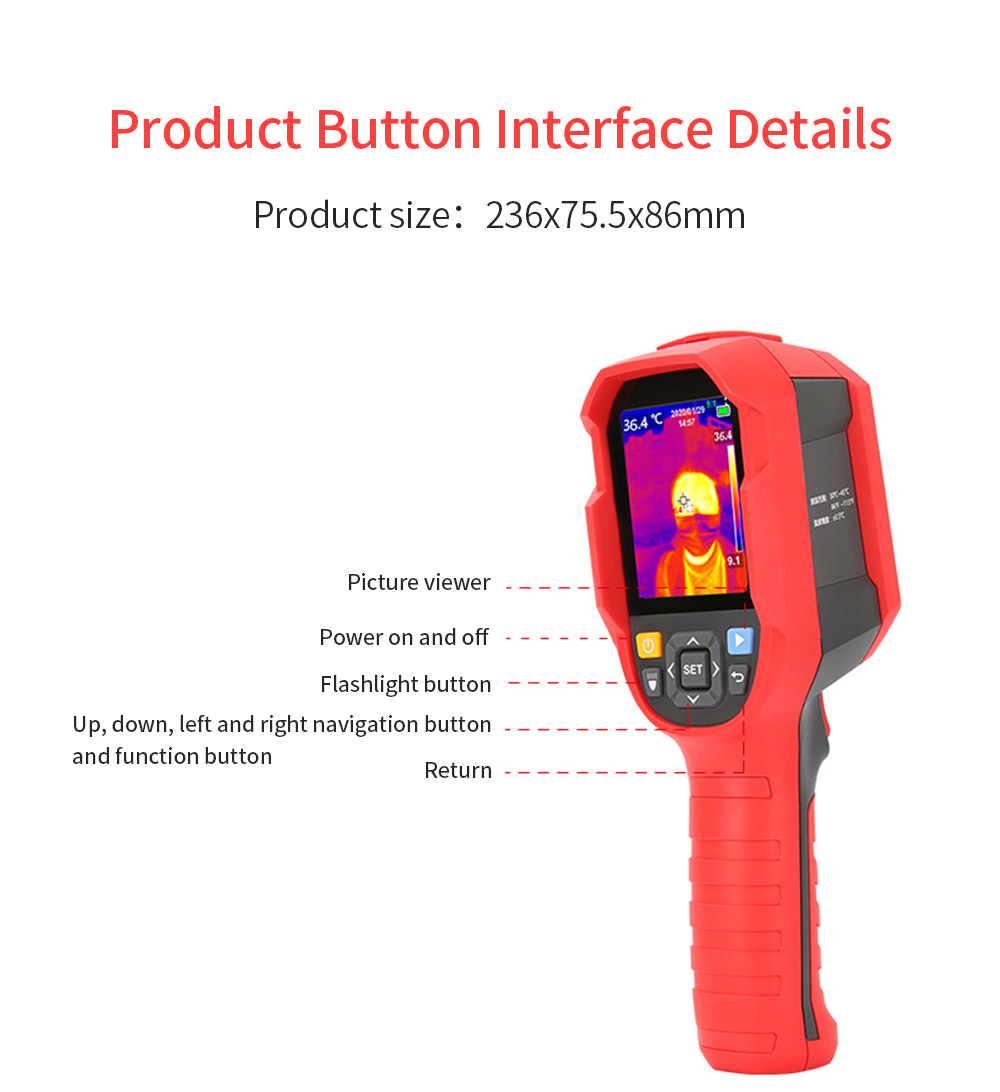

Product size	236mm x 75.5mm x 86mm
Standard accessories	Manual, 16GB TF card
Standard carton gross weight	2.2kg
