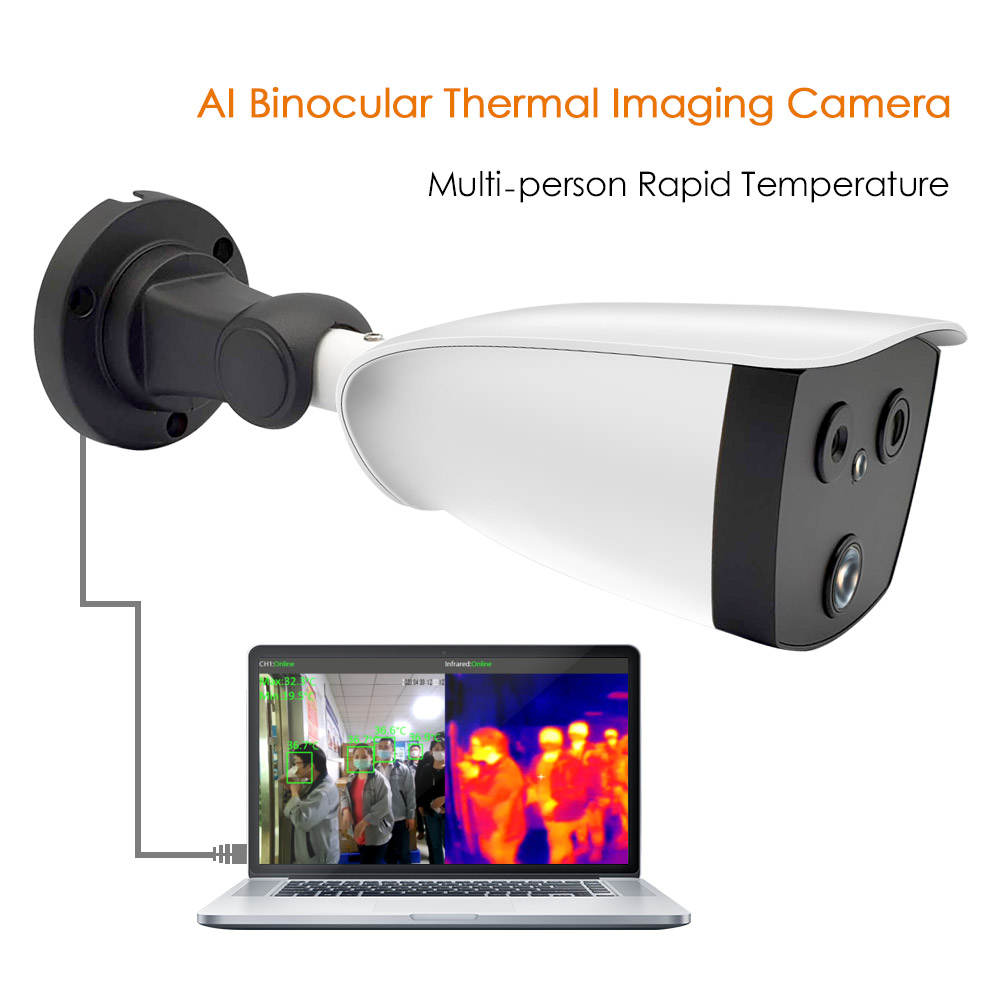

CE FCC Non-contact AI Binocular Thermal Imaging Camera Optical Bi-spectrum Fever Detection Network Bullet CCTV IP Camera Scanner

Our CE FCC Non-contact AI Binocular Thermal Imaging Camera Optical Bi-spectrum Fever Detection Network Bullet CCTV IP Camera Scanner has been tested to reach international and national standards. Due to the devotion of our employees such as designers and R&D experts, it is designed to be eye-catching in its appearance and powerful in its newly-updated functions. With it’s excellent features, our IP Camera/NVR/Solar Camera/Smart Battery Camera is much more competitive in the market, bringing more benefits to customers.

Units per Carton
Carton Dimensions (mm)
Carton Weight (kg)

As a driven company,Shenzhen LSVISION Technology Co., Ltd. has been developing products on our own on a regular basis, one of which is IP Camera/NVR/Solar Camera/Smart Battery Camera.It is the newest product and bound to bring benefits to customers. We can manufacture this product to your exact specifications. Shenzhen LSVISION Technology Co., Ltd. intend to gather more industry talents because people’s wisdom is driven source for us to advance forward. We plan to allocate a large amount of money for product development and technology upgrades. What’s more, we aim to become an influential enterprise in the global market.

Lieu d'origine :	Guangdong, Chine	Nom de marque :	LSVISION
Numéro de modèle :	LS-TI003	Caractéristiques spéciales :	Imperméable à l'eau / Imperméable aux intempéries
Capteur :	CCD	Format de compression vidéo :	H.265
Nom du produit :	AI Face Imagination Scanning Analysic IP Thermal Camera	Capteur d'image :	1920x1080P
Sensor type:	1/2.8″ 2.0M Pixel CMOS	Day& Night:	ModeiR cut filter with auto switch
Temperature Measurement:	Support global and local temperature	Web Client Language:	languages English, Chinese

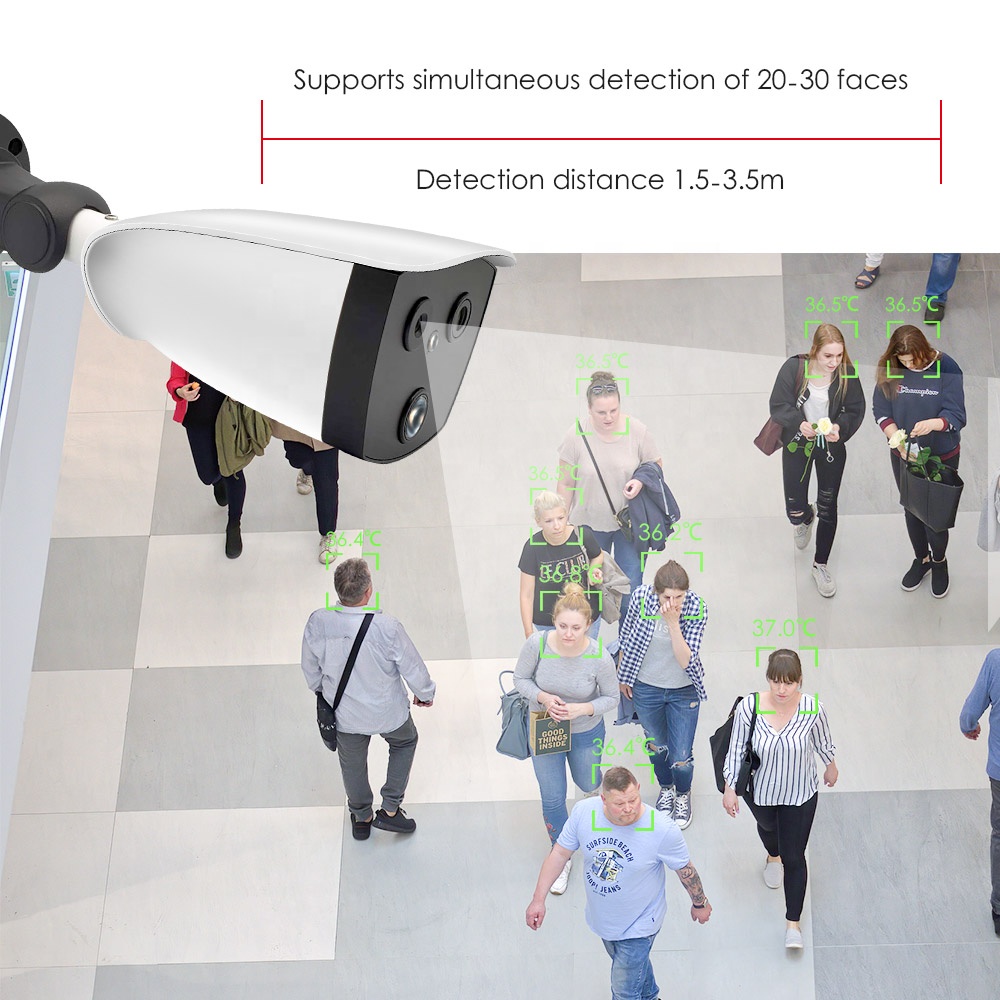

Face snapping:	Built-in Al algorithm, Supports simultaneous detection of 20-30 faces	Temperature Range:	From-15°C to +150°C
Field of View:	84° x 45° (H x V)	Focal Length:	4mm
Certification :	CE FCC

CE FCC Non-contact AI Binocular Thermal Imaging Camera Optical Bi-spectrum Fever Detection Network Bullet CCTV IP Camera Scanner

Description du produit

Modèle	LS-TI003
Thermal Camera
Type de capteur	Vox Uncooled Focal Plane Arrays
Résolution	256×192
Pixel Interval	12pm
NETD	Less than 60 mK (@25°C.F#=1.1)
Aperture	F1.0
Field of View	35° x 27° (H x V)
Optical
Capteur d'image	1/2.8″ 2.0M Pixel CMOS
Résolution	1920x1080P
Min. Éclairage	Color: 0.005Lux @ (F1.2, AGC ON), B/W 0.001 皿@ (F1.2, AGC ON)
Field of View	84° x 45° (H x V)
Focal Length	4mm
Shutter Speed	1s to 1/100,000s
Balance des blancs	Auto/Manual/ATW (Auto-tracking White Balance)/lndoor/Outdoor/Daylight Lamp/Sodium Lamp
Day& Night	ModeiR cut filter with auto switch
WDR	80 dB
Fonctionnalité
Bi-spectrum Image Fusion	Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture	Combines details of thermal and optical image PIP, overlay thermal image on optical image
Smart Function
Face snapping	Built-in deep learning Al algorithm, Supports simultaneous detection of 20-30 faces
Temperature Measurement	Support global and local temperature
Temperature Range	From-15°C to +150°C
Temperature Accuracy	Target temperature 35°C A 38°C ±0.3 °C Target temperature 20°C A 33°C ±0.6 °C Target temperature 38°C A 50°C ±0.6 °C
Réseau
Main Stream	Thermal: 25fps(1920 x 1080, 1280 x 720)
Sub Stream	Thermal: 25fps(704 x 576, 352 x 288)
Compression vidéo	H.264 (Baseline/Main/High Profile) /MJPEG/H.265
Compression audio	G 711u/G711a/G.7221/MP2L2/G.726/PCM
Protocoles	TCP/IP, , GB/T 28181, DHCP. RTP, RTSP,PPPoE UPnP, UDP
API	(Profile S, Profile G, Profile T), SDK
Général
Web Client Language	languages English, Chinese
Puissance	DC 12V, 0.65A
Work Temperature/H umidity	From -20°C to 55°C; Humidity: 95% or Less
Protection Level	IP66
Dimension	246 mm x 101 mm x 81 mm (with bracket)
Poids	Approx. 1.0 kg
