Caméra infrarouge Lsvision à balayage thermique Capteur de chaleur Dispositif de balayage de température OEM ODM

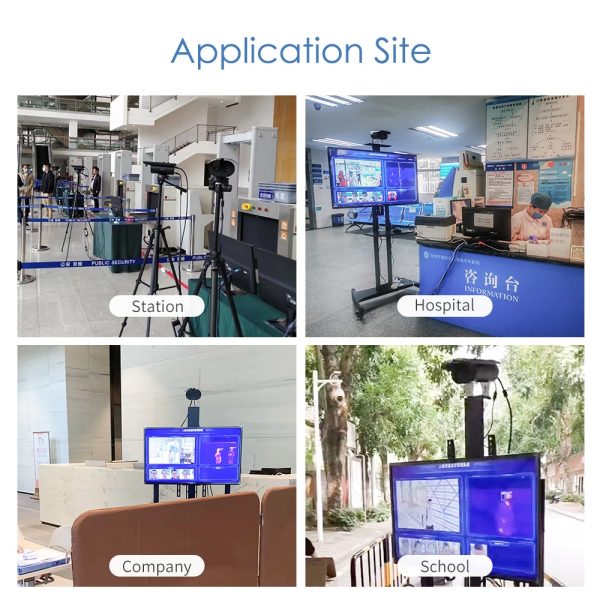

The human body temperature measurement thermal imaging camera is based on artificial intelligence algorithm and infrared thermal imaging temperature measurement technology, which can quickly check and warn people with fever symptoms in the crowd, and accurately display the highest temperature value. This equipment is widely used in large public places such as airports, stations, schools, hospitals, factories and shopping malls.

Units per Carton
Carton Dimensions (mm)
Carton Weight (kg)
Contact Sales

Model No.: LS-TI006

1、High-sensitivity infrared camera and high-definition visible light camera.

2、Used for long-distance human body temperature detection.

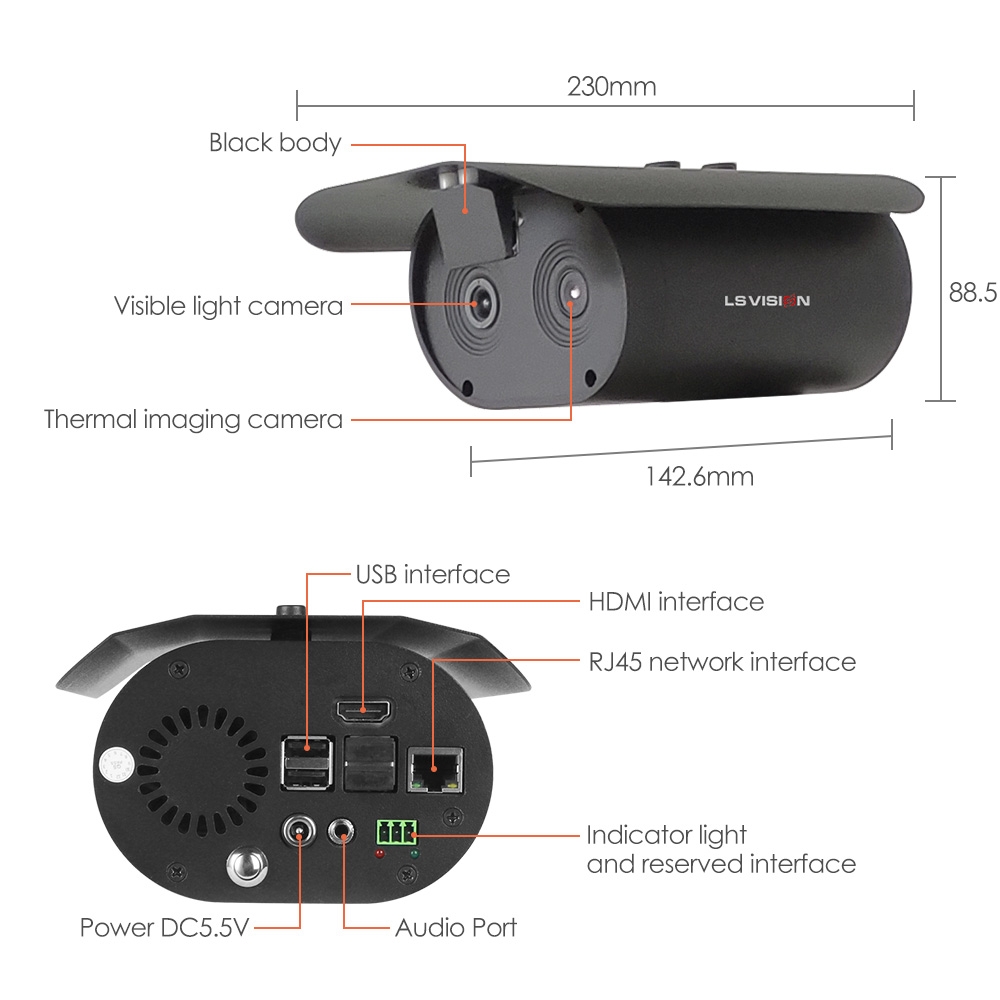

3、Camera + embedded motherboard + black body integrated structure.

4、No need a computer, connect the monitor directly.

5、Built-in black body, automatic correction, no fear of the influence of environmental temperature changes on thermal imaging.

6、Accurate forehead temperature algorithm measurement, filtering the background high temperature influence.

7、Easily connect to the cloud for data analysis.




Not Affected By High Temperature Objects

When the human face coincides with the background of the high-temperature object, interference can be eliminated and the temperature of the human forehead can be detected normally.

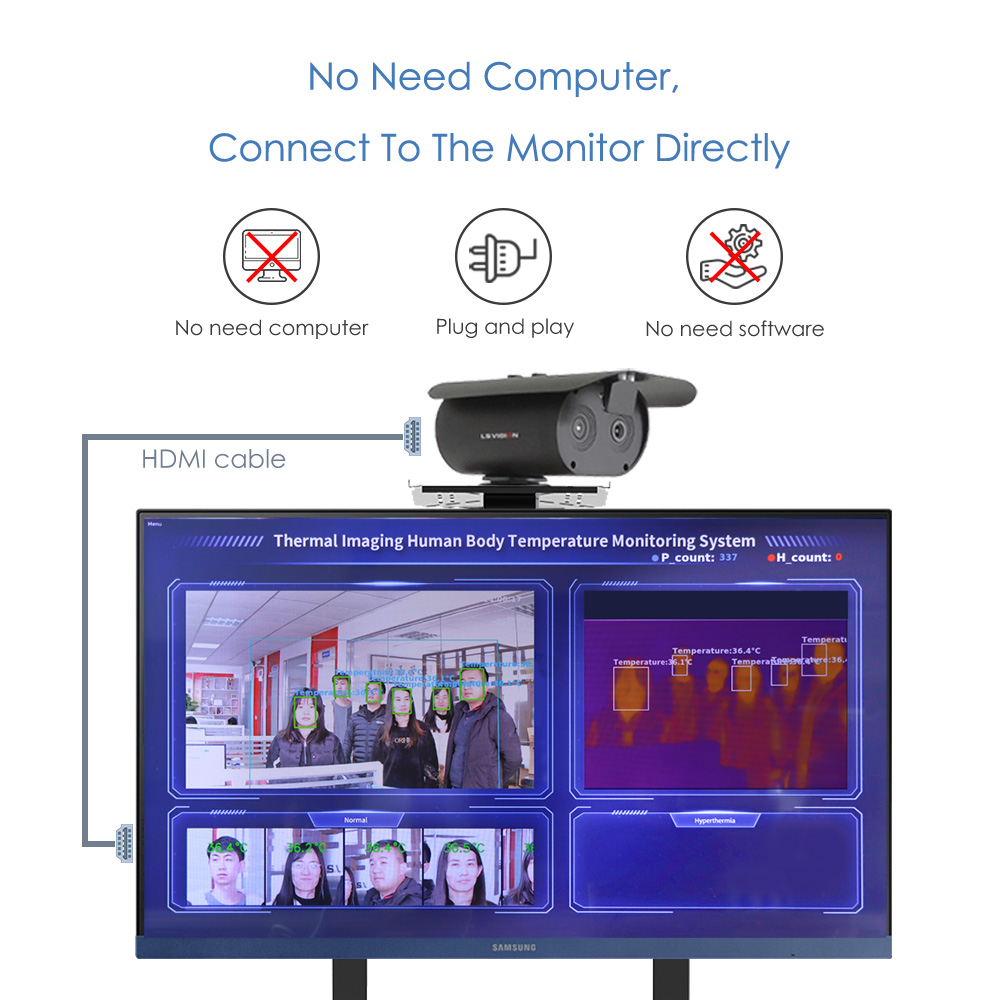

Easy To Use

No Need Computer, Connect To The Monitor Directly.

Both visible light and thermal imaging will display the human body temperature, and the voice broadcast will report normal body temperature and high temperature alarm.




High temperature alarm

Simultaneous Detection Of 10-20 Faces

Detection Distance 1.5-3.5m

  Technical Specification
Modèle
LS-TI006
Temperature Measurement
Measurement Range
20°c -50°c
Field Angle(Calculated Value)
40°C*30°C
Calibration
Self-Calibration
Measurement Distance
1.5-5m
Infrared Camera
Detector Type
Uncoiled Infrared Array Sensor
Résolution
160X120
Pixel Pitch
17μm
NETD
≤60mk（F/1,300K, 50Hz）
Frame Rate
15 Hz
Temperature Measurement Data Output
Full Range Temperature Output
People Per Second
200 people in one minute
Visible Camera
Résolution
1920*1080(2 M>illion Pixels)
Imaging Device
1/2.7inch CMOS
Minimum Illuminance0.01
Lu（Color Mode），0.001Lux(Black and White Mode)
Signal to Noise Ratio
>56dB
Other Parameters
HAIRCUT Automatic Switching, Backlight Compensation, Strong Light Suppression, Automatic White Balance
Black body
Black target surface diameter
20mm*30mm
Effective emissivity
0.96 ±0.02
temperature range
(Ambient temperature+5°C)~(50°C)
Temperature resolution
0.01°C
Temperature stability
>±0.1°C/60min
Heating time
<2minute
Motherboard parameters
SOC
Broad com BCM2711
CPU
64 bit 1.5GHz Temperature stability (28nm)
Bluetooth
5.0
USB
USB 2.0*2/USB 3.0*2
HDMI
Micro HDMI*2 support 4K60
Powered by
Hype C(5V 3A)
Réseau
Wi-Fi 802.11AC,Gigabit
multimedia
H.265(4Kp60 decode) H.264(1080p60 decode,1080p30 encode) Opening es,3.0 graphics)
Other Parameters
Installation Environment
Indoor or Outdoor
castellations Method
Support, Wall Mounting, Hoisting
Température de fonctionnement
0℃~40℃
Taille
230mmx142.6mmx88.5mm
out packing size
265 (L) * 270 (W) * 150 (H) mm
Poids
1.5 KG

LS-TI006 AI Thermal Imaging.pdf
